Products > InfoPro


The InfoPro graphical user interface software was developed to provide our customers with on-demand breaker information from a USB connected trip unit.

AC-PRO-II, Trip Unit Features Include:

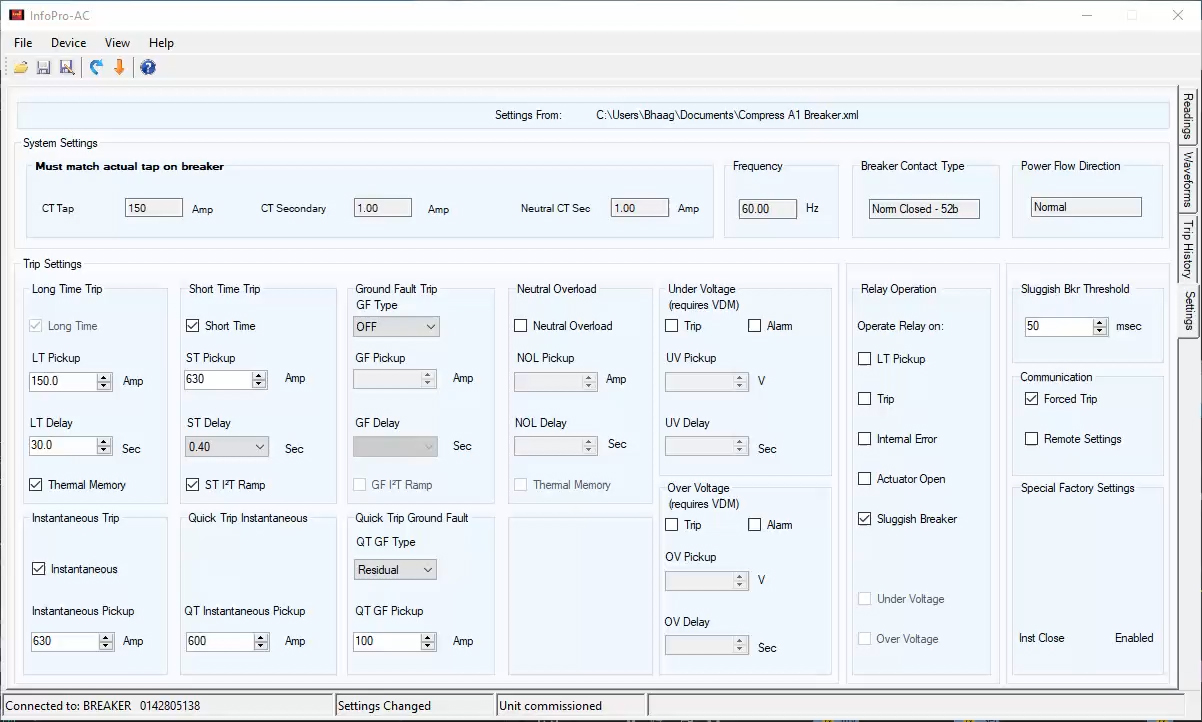

  • Trip unit settings
  • Current, Voltage & Power readings

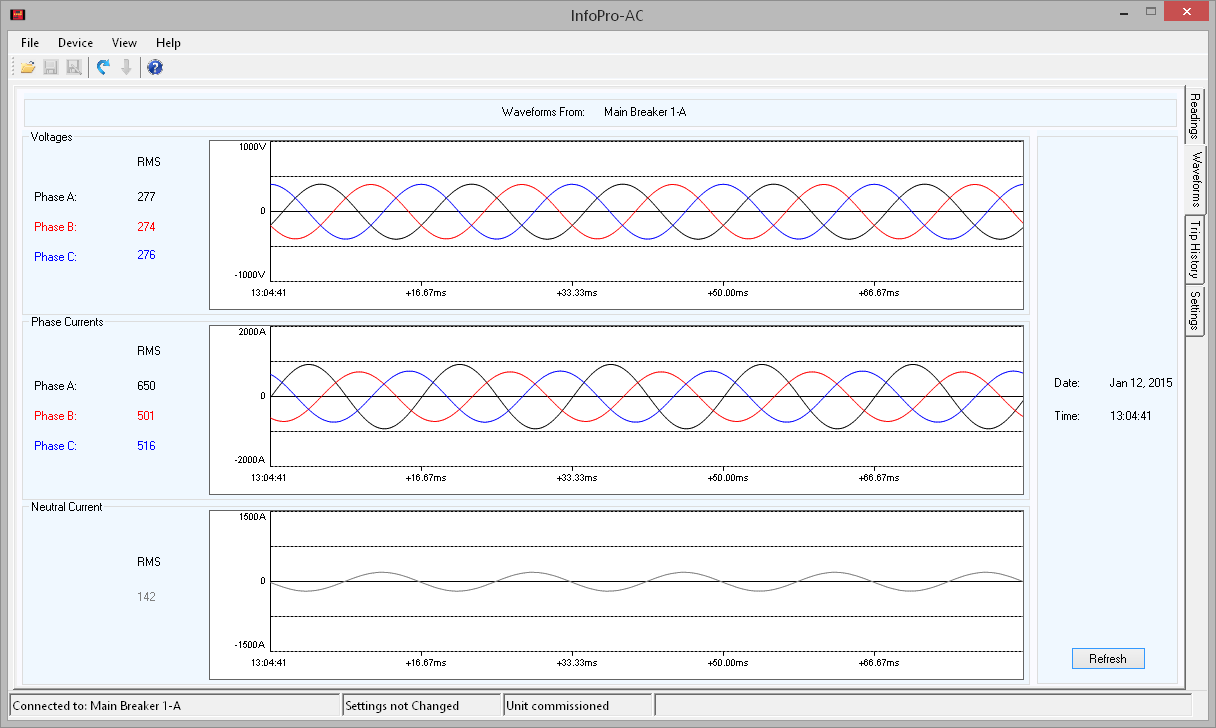

  • Waveforms on Demand
  • Data on the Last 8 Trips
  • Saved Trip Data
  • Upload and Save Parameters
  • Trip Unit Firmware Upgrades
  • Soft Quick-Trip Control
  • Control E/O Breakers

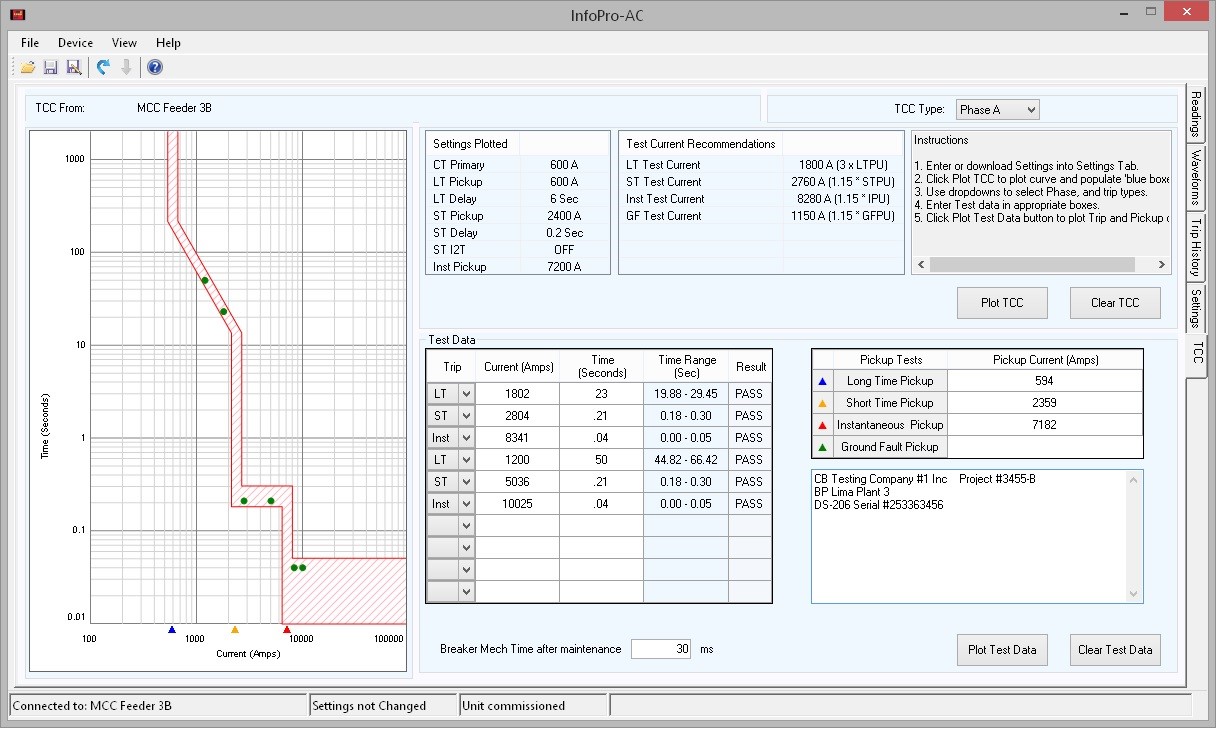

  • Plotting Time Current Curves
  • Input & Document Test Results
  • Input & Document “As Found” and “As Left” Trip Unit Data
  • Print and Save Test Reports
  • Perform RS-485 Modbus Communications test
InfoPro requires:
  • USB connection
  • Windows 10 or higher

InfoPro Versions

Our InfoPro software is available to our customers in three separate versions depending on your trip unit. Software versions are exclusive to their specific trip unit models.

Version Compatible Devices Download
ONLY for units with Side Test Ports
See diagram below*
ONLY for units with Front Test Ports
See diagram below*
AC-PRO-II, Trip Unit

InfoPro Media

We've created step-by-step videos to demonstrate how easy using InfoPro can be. The following video shows the proper procedure to upload settings given from an older AC-PRO to an AC-PRO-II using the InfoPro software in place of manual entry.

This video also demonstrates the recommended procedure of swapping the trip unit on the breaker.

Additional Videos are available on our Youtube or on our Videos page.

InfoPro Images

InfoPro-AC software version history

Version Highlights / Summary


  • Added AC-PRO-NW support
  • Added support for wireless connection of InfoPro to AC-PRO-NW via URC USB wireless dongle
  • Rearranged Settings tab
  • Miscellaneous improvements and bug fixes

  • Added Breaker Control Window
    • Trip Breaker
    • Close (E/O) Breaker
    • Soft QUICK-TRIP®
  • Updated for compatibility with v4 firmware
    • Power Demand Metering (KWD/KVAD
    • Scheduled Service Reminder
    • Settings – additional settings (e.g. Reverse Power, Current Unbalance)
  • User can import logo for printed reports

  • Added support for special AC-PRO-II v3 firmware
  • Added QT-IM device firmware upgrade support

  • Plotting Time Current Curves (TCCs) with Test Results
  • Input and document Breaker Test Results
  • Input and document “As Found” and “As Left” trip unit data
  • Print and Save Test Reports
  • Perform RS-485 Modbus Communications test

  • Updated for compatibility with AC-PRO-II v2 firmware

  • Increased maximum CT rating from 5000A to 6300A. (requires AC-PRO-II firmware v1.8 or later).
  • Added ability to display Breaker position in Readings tab, based on aux contact. (requires AC-PRO-II firmware v1.7 or later).
  • Ground Fault current RMS value is now displayed in Trip History tab.
  • USB connectivity improvements.
  • Other miscellaneous minor improvements.

Initial Release
